ICON 1000
Go back
Video instructions
- Using the ride/dress mode
- Time setting
- Manual winding
Measurements
Technical specs
Dimensions

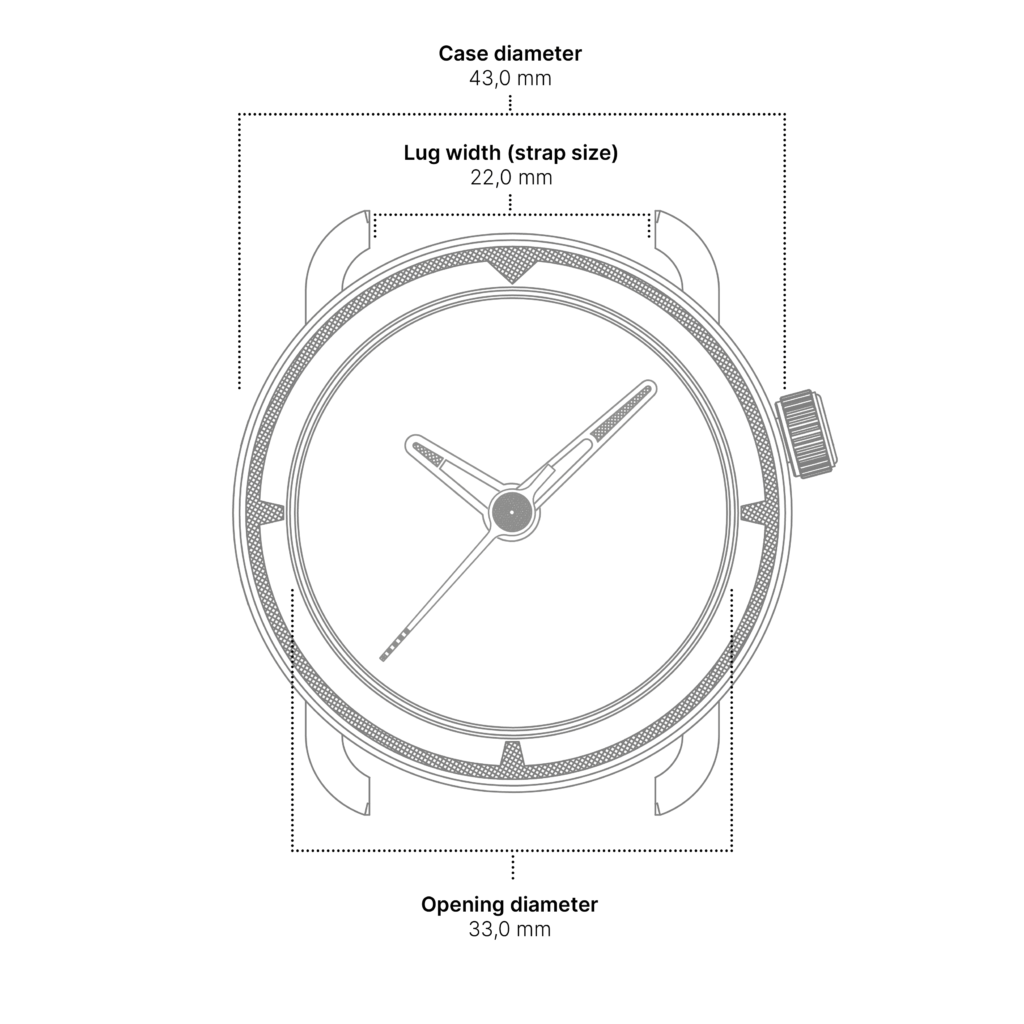

- Diameter 43 mm

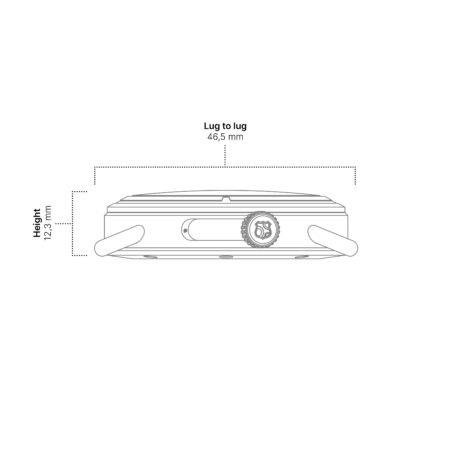

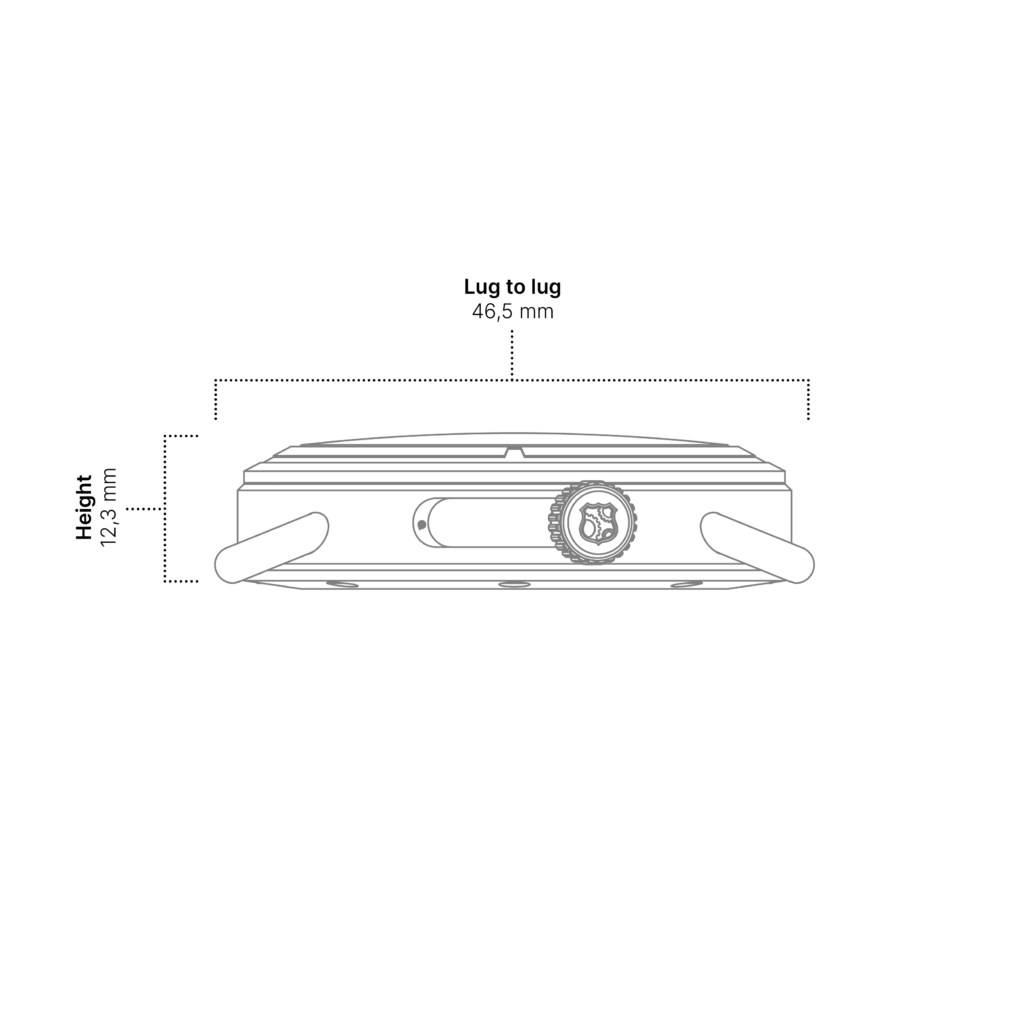

- Lug-to-Lug 46.50 mm
- Height 12.30 mm
- Opening diameter 30 mm
- Weight (w. strap) 95g
Movement
- Swiss-made SELLITA caliber SW200-1 S b with Ruthenium Anthracite plating
- Decorated rotor and oscillating weight with sunburst finish

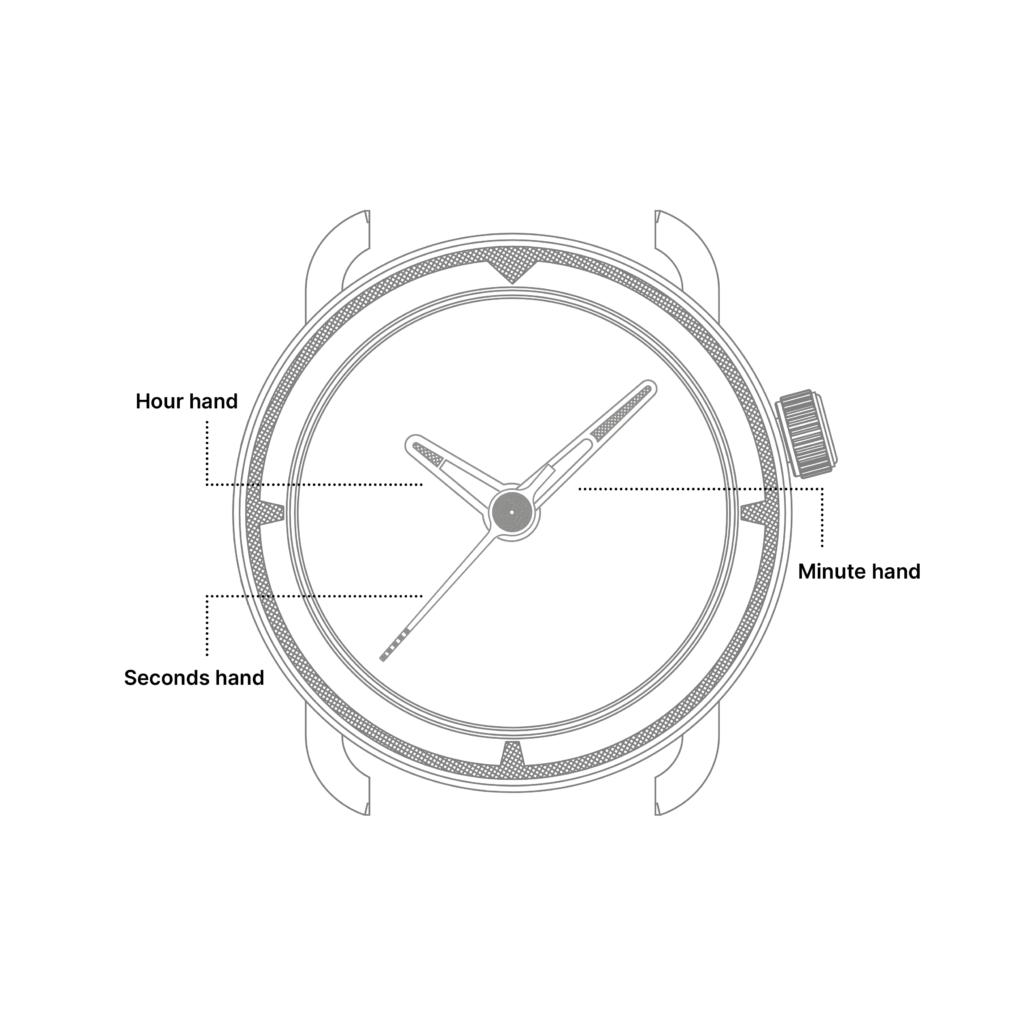

- Time only (hours, minutes, seconds)
- Automatic and manual winding
- 26 Jewels, Incabloc shock protection system
- 41 Hours Power reserve
- VPH 28, 800 bph, Hz
- Accuracy ± 15sec per day
Features
- Skeletonized sandwich dial with 30 degree rotation adjustment between two positions “RIDE” and “DRESS”, can be operated with crown or bezel

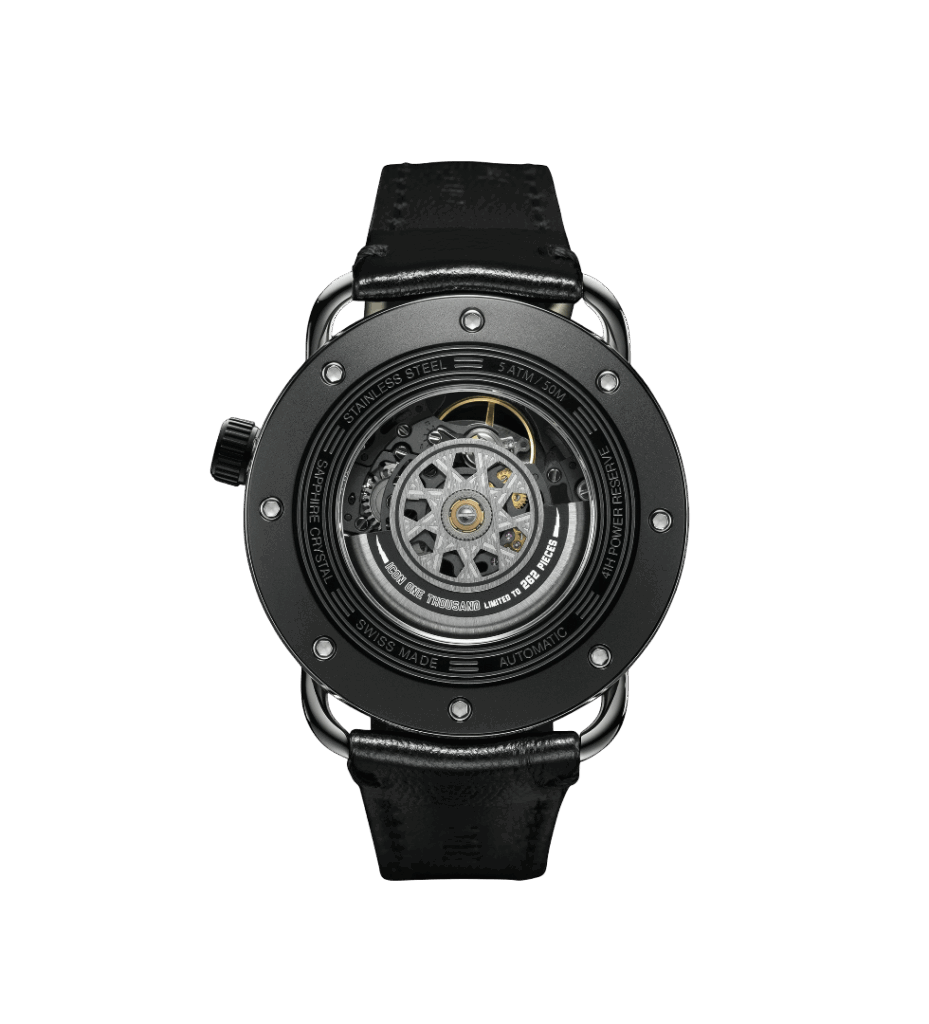

- Exhibition caseback
- 5 ATM, 50 meters
- 3 year full warranty
Case
- 4 piece dual case system; outer case and inner (movement) case.
- Inner case in polished 316 L stainless steel with deep etching
- Outer case in vertically brushed 316 L stainless steel with protruding, polished wire lugs.
- Bezel in polished & sandblasted 316 L stainless steel.
- Screwback Caseback 316 L Stainless steel with sandblast and polished finishing
- Crown 316 L stainless steel with reinforced tube
Materials
- Top glass sapphire crystal with layers of anti-reflective coating
- Caseback glass mineral
- Case and caseback 316 L stainless steel
- Double calf leather strap
- Third inner dial ring (lowest part) made from reforged 2013 ICON1000 Motorsports custom built Triumph “Speedmaster” stator cover
Strap
- Black double calf leather strap with ribbed inlay, white loop, stamped black inner lining and curved springbar
- Stainless steel wire buckle with polished and sandblast finishing, black PVD coated tongue
- Width (lugs) 22mm
- Width (buckle) 18mm
- Length 125/75 mm
